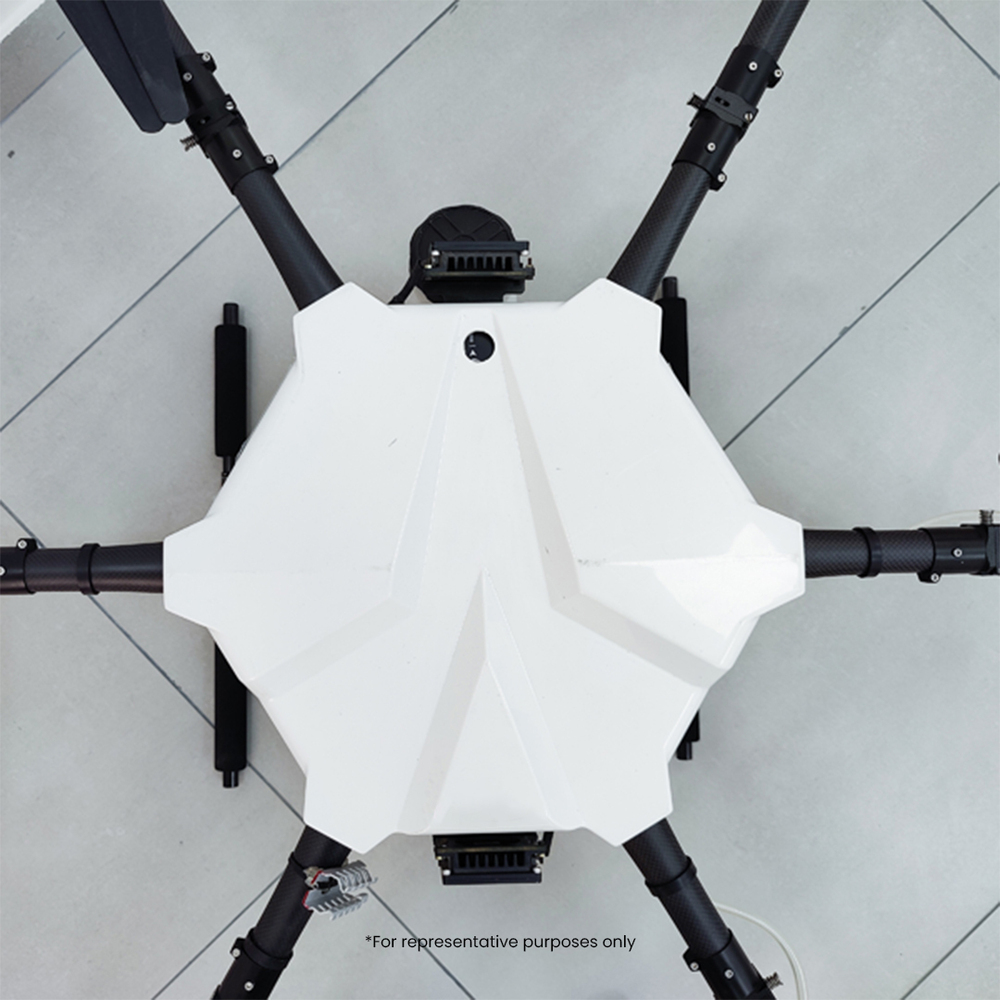

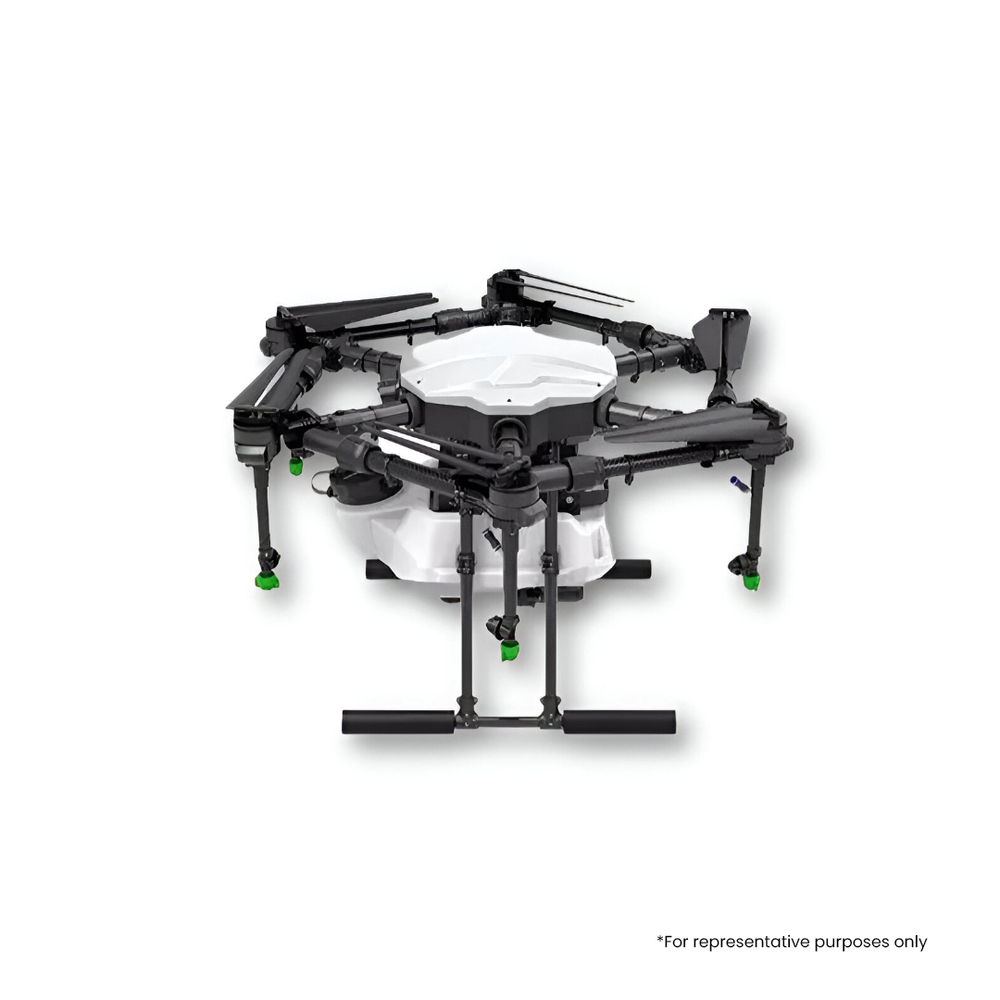

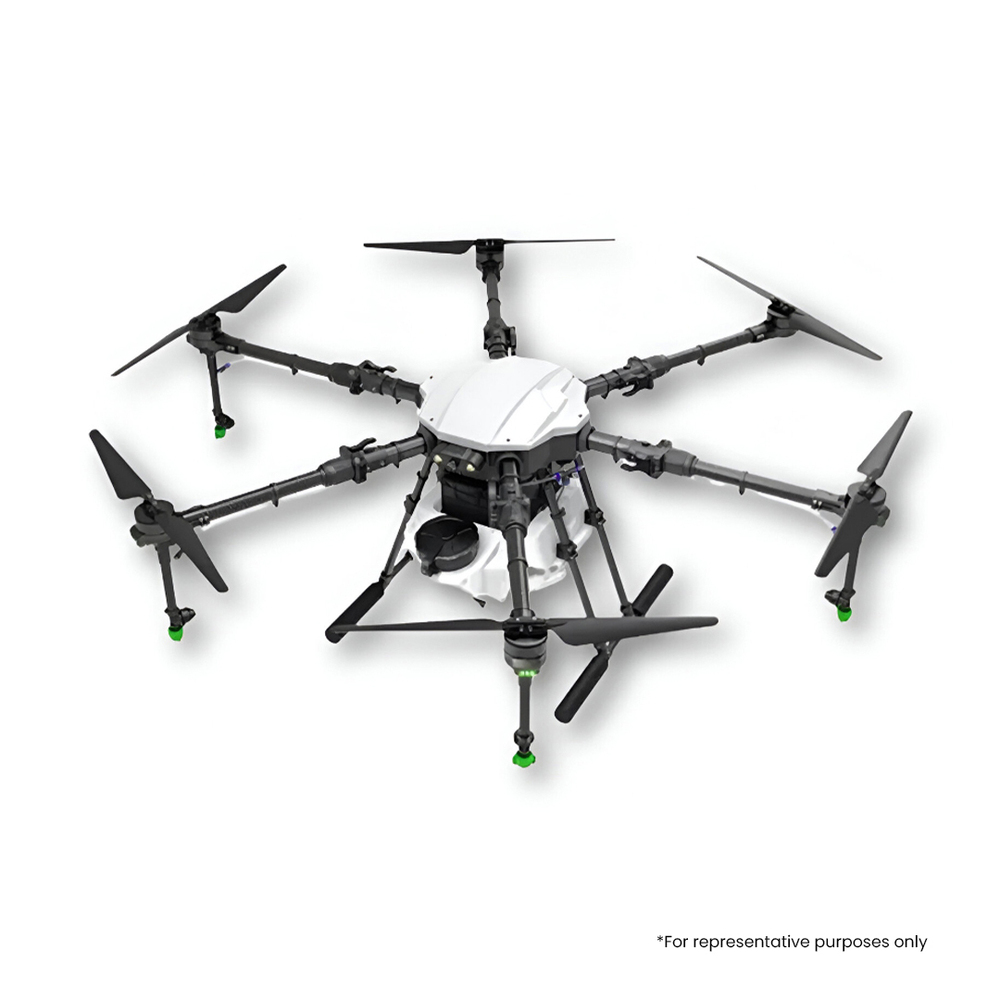

10L Agriculture Drone

About 10L Agriculture Drone

General Specifications

• Camera Resolution: 16 MP

• Tank Capacity: 10 Liters

• Application: Agriculture & Farming

• Drone Structure: 6-Axis Hexacopter

• Camera Technology: FPV (First Person View) Camera

• Operation Mode: Fully Automatic

• Automation Grade: Automatic

Technical Specifications

Performance

• Spraying Capacity:

  • Up to 6 acres/hour

  • Up to 25 acres/day (with multiple battery sets)

• Maximum Flight Time: Up to 20 minutes (with payload)

• Maximum Speed: 78 m/s, ensuring rapid field coverage

• Operating Altitude: Effective up to 10 meters for precise spraying

• Control Range: Up to 5 km (LOS) via Ground Control Station (GCS)

•


Battery System

• Battery Type: Lithium Polymer

• Capacity: 21,000i22,000 mAh

• Voltage: 44.4 V (12S Configuration)

• Charging Time: Up to 50 minutes

• Connectors: AS150U and XT90 (for heavy-duty performance)

•


Payload & Spraying System

• Payload Capacity: Up to 10 kg

• Nozzle Type: High-Pressure Flat Fan Spray Nozzles

  • Compatible with Hollowcone and Air-Injected nozzles from leading manufacturers

• Spraying Precision: Uniform coverage and minimal wastage for improved crop yield

•
  Smart Features

• Return to Launch (RTL): Automatically returns to base when the tank is empty, battery is low, or mission is complete.

• Mission Resume: Resumes interrupted missions with 50 cm positional accuracy, maintaining workflow consistency.

• RADAR-Based Collision Avoidance: Detects obstacles (trees, poles, wires) within a 22-meter range and reroutes safely in autonomous mode.

• Live FPV Streaming: Integrated 2 MP FPV camera enables real-time video transmission to the GCS for monitoring and decision-making.

• Operating Temperature Range: 0C to 50C, suitable for diverse weather and terrain conditions.

Trusted by

• ICAR Institutes, KVKs, and other Government Agricultural Organizations, reaffirming its reliability, performance, and field-proven results.

Key Benefits

• High Efficiency: Covers up to 6 acres/hour, saving time and labor.

• Extended Productivity: Capable of spraying up to 25 acres/day with spare batteries.

• Precision Agriculture: Ensures consistent droplet size and optimized pesticide/fertilizer use.

• Automated Operation: Reduces manual effort with fully automatic flight modes.

• Durability & Reliability: Built to perform under demanding agricultural conditions.

Empower your farm with smart technology and efficient spraying i choose the Hexacopter Agricultural Drone for next-level agricultural automation.

Efficient and Accurate Spraying

With a payload capacity of 10 liters and four anti-drip nozzles, the drone ensures even and precise chemical application across farm fields. Its 3-4 meter spraying width and advanced automation features significantly reduce labor and chemical waste.


Advanced Technology for Farming

Equipped with GPS, ultrasonic sensors, gyroscope, and an integrated HD FPV camera, this drone supports GPS-guided and automatic waypoint flight modes. The 5.5-inch LCD remote ensures clear visibility, while Wi-Fi and RF connectivity enable seamless real-time control and monitoring.


Built for Indian Agriculture

Engineered with weather resistance and versatility, the drone operates reliably from -10C to 50C, making it suitable for diverse Indian climates. Its foldable design offers portability, while robust carbon fiber construction provides lasting durability.
