Training Drone with Camera

About Training Drone with Camera

Product Description:

Introducing our high-performance Training Drone, meticulously designed for pilot training, academic research, and entry-level UAV applications. Engineered with a rugged carbon fiber frame and powered by a robust 6000mAh lithium battery, this drone ensures reliable flight performance and easy handling. Equipped with a Full HD 1080p camera on a 2-axis gimbal, real-time GNSS telemetry, and intelligent flight modes, it offers a complete UAV solution for training institutes, R&D centers, and UAV beginners.

---

Key Features:

• Ready-to-Fly (RTF) Fully assembled and calibrated out of the box

• Vertical Takeoff & Landing (VTOL) Quadcopter configuration

• GPS-Stabilized Flight with Return-to-Home (RTH) functionality

• Live Telemetry & HD Video Feed for enhanced situational awareness

• Modular Payload Capability Supports FPV, sensors, and more

• Carbon Fiber Frame Lightweight, durable, and impact-resistant

• Auto Fail-Safe Mechanism Activates on low battery or signal loss

---

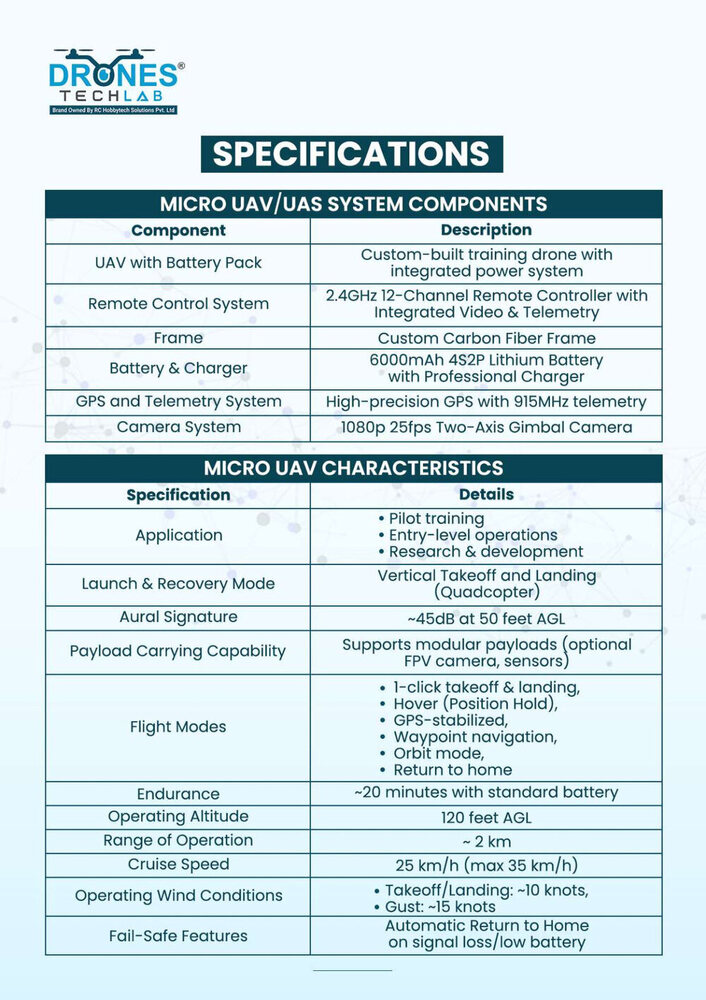

System Components:

• Drone (UAV): Custom-built quadcopter with integrated power system

• Remote Controller: 2.4GHz, 12-channel with video and telemetry display

• Frame: High-strength carbon fiber structure

• Battery & Charger: 6000mAh 4S2P Li-ion with professional-grade charger

• GNSS Module: Multi-GNSS (GPS, GLONASS, Galileo, BeiDou)

• Telemetry: 915MHz wireless real-time data transmission

• Camera: Full HD 1080p @ 25fps, 2-axis gimbal for stabilized footage

---

Technical Specifications:

• Takeoff Weight: Approx. 1800g (incl. battery & propellers)

• Dimensions (LxWxH): 400 x 400 x 150 mm

• Max Flight Speed: 12 m/s

• Ascent Speed: Up to 5 m/s

• Descent Speed: Up to 0.8 m/s

• Ceiling Altitude: 1000 meters

• Operating Temperature: 0C to 50C

---

Propulsion System:

• Motors: 935KV High-efficiency Brushless Motors

• Voltage: 14.8V (4S LiPo)

• Power Output: 350W per motor

• Max Thrust: 900g per motor

• Propellers: 10" Carbon Fiber/Plastic Composite (2-blade, 4.5" pitch)

---

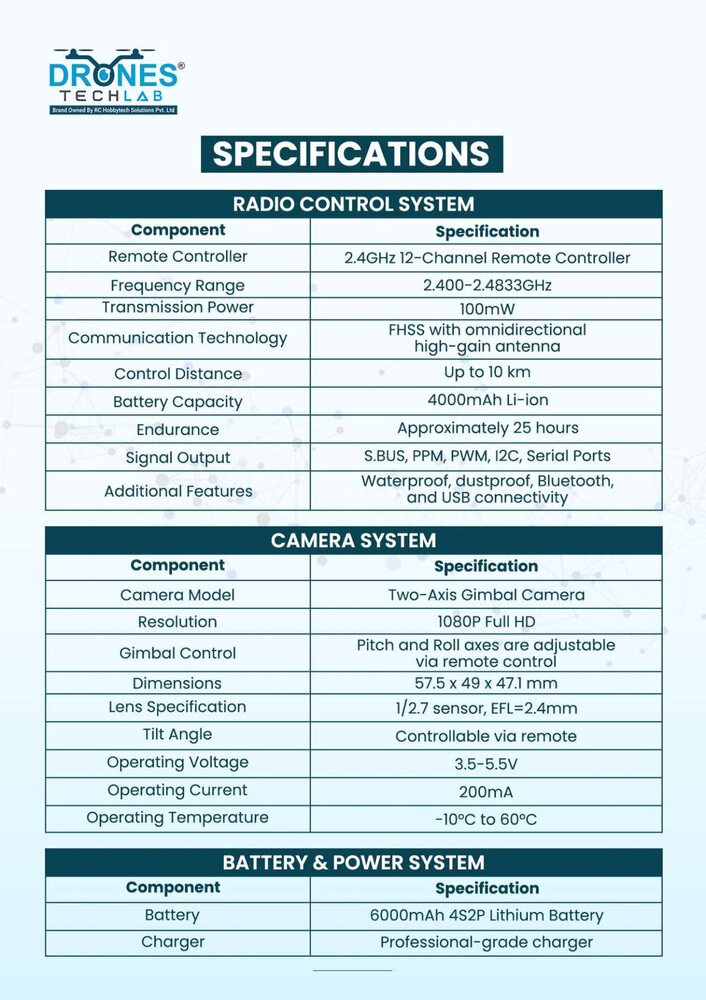

Remote Control Specifications:

• Frequency Band: 2.400 2.4833GHz

• Transmission Power: 100mW

• Control Range: Up to 10 km

• Battery: 4000mAh Li-ion (Up to 25 hours)

• Technology: FHSS with omnidirectional high-gain antenna

• Outputs: S.BUS, PPM, PWM, I2C, Serial Ports

• Features: Waterproof, Dustproof, Bluetooth, USB

---

Camera System:

• Resolution: 1080p Full HD @ 25fps

• Gimbal: 2-axis stabilization (Pitch & Roll)

• Sensor: 1/2.7 CMOS with EFL 2.4mm lens

• Operating Voltage: 3.5V 5.5V

• Current Draw: 200mA

• Temperature Range: -10C to 60C

---

Battery & Charging:

• Battery Type: 6000mAh 4S2P Lithium

• Charger: Professional-grade smart charger included

---

Ideal For:

• Aviation Training Schools

• Educational & Research Institutes

• New UAV Operators & Enthusiasts

Versatile Flight Modes for Ease of Use

The Training Drone offers three selectable flight modesStabilized, Altitude Hold, and Manualallowing users to progress from basic stability, to intermediate hovering, and finally to full manual control. This makes it an ideal choice for beginners as well as those seeking to refine their flying skills in a safe and controlled manner.


Stable Performance and Durability

Featuring a 6-axis gyroscope and robust brushless motors, the drone maintains reliable stability and consistent flight even at speeds up to 30 km/h. Detachable plastic propellers and its capacity to carry up to 150 grams ensure performance and safety during training sessions.


Intuitive Connectivity and Control

Stay connected with 2.4 GHz wireless control and seamless app support for Android/iOS devices. Integrated LED lights assist in orientation and visibility during flight, making the training process intuitive for users of all levels.
