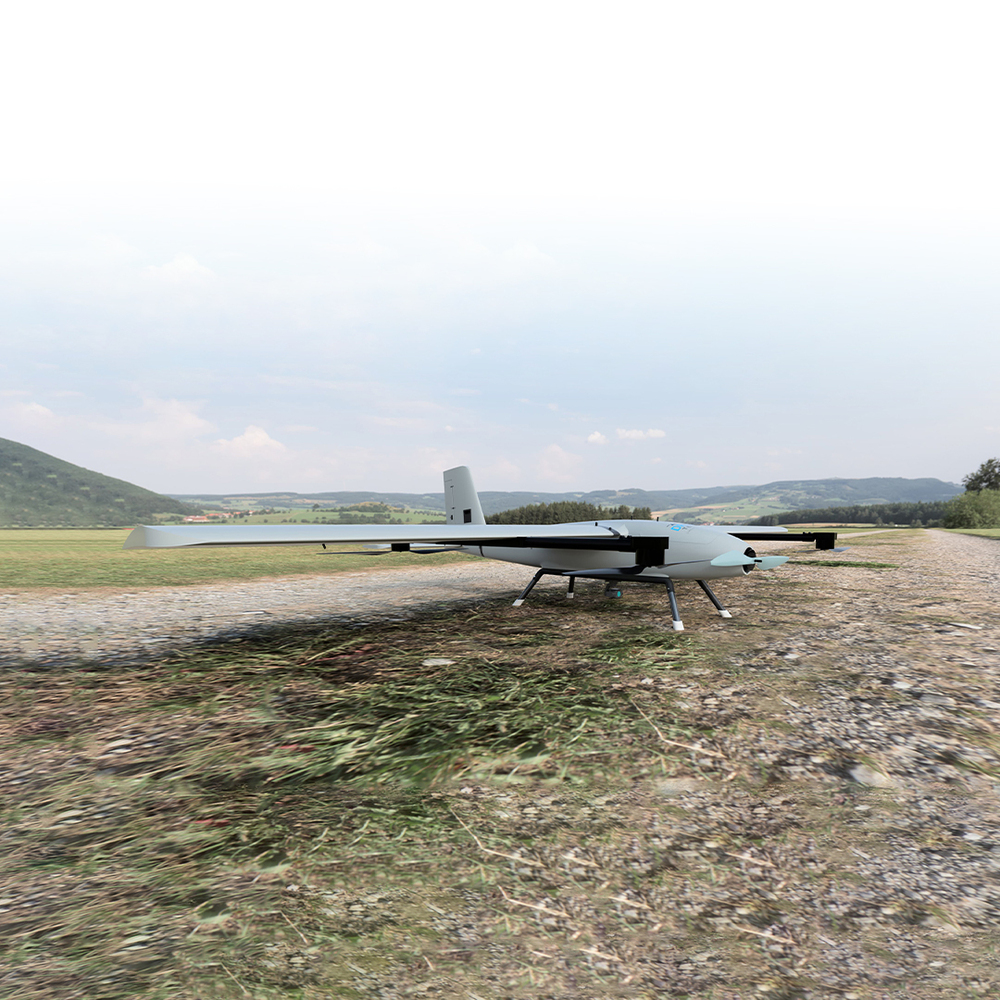

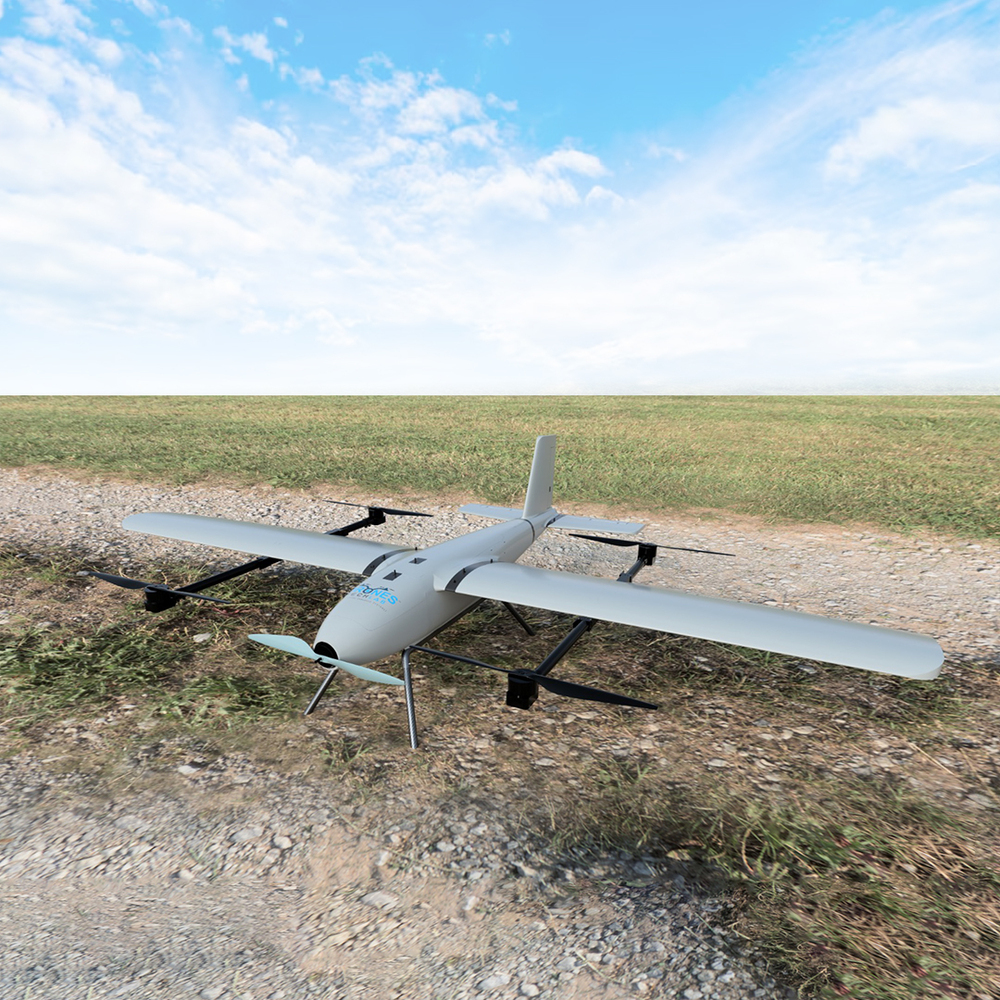

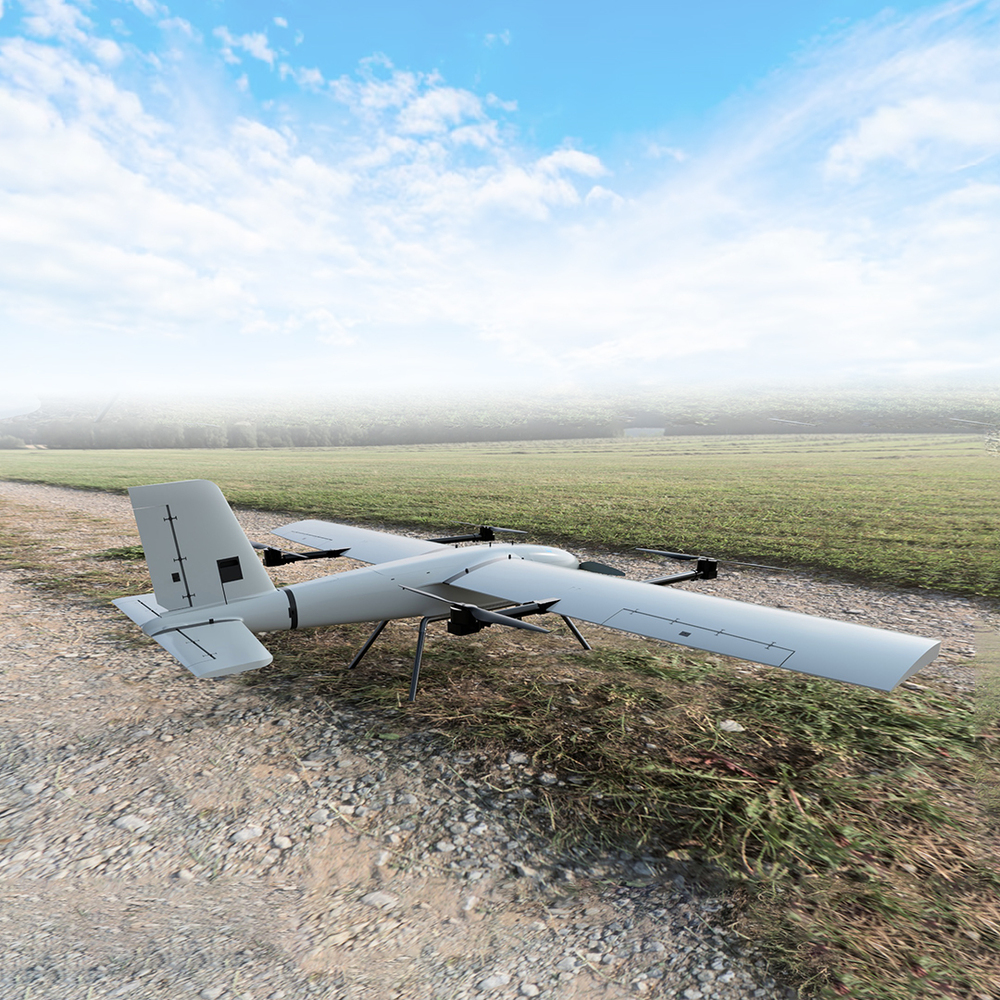

MITSU 320 (Versatile VTOL Drone for Diversified Operations) Surveillance Drone

About MITSU 320 (Versatile VTOL Drone for Diversified Operations) Surveillance Drone

Key Features

• Vertical Take-off and Landing (VTOL) for easy deployment and recovery

• Advanced Airspeed Measurement System

• Secure and Reliable Communication Link

• Industrial-grade Precise GNSS for accurate positioning

Technical Specifications

Dimensions & Weight

• Length: 1980 mm

• Wingspan: 3200 mm

• Height: 450 mm (Ground Clearance: 170 mm)

• Maximum Take-off Weight: 24 kg

• Operating Weight: 22 kg

•


Camera System (MIPI Camera)

• Resolution: 1080P

• Working Current: 14 mA (Normal), 140 mA (With Light On)

•


Power System

• Propulsion: 4 — Electric Motors for VTOL + 1 — Electric Pusher Motor

• Battery: Customised High-Endurance Batteries

•


VTOL Mechanism

• Configuration: Inverted Quadcopter for Vertical Take-off and Landing

• Transition Mode: Pusher Configuration for Forward Flight

•


Flight Performance

• Maximum Speed: 30 m/s

• Cruise Speed: 21 m/s

• Stall Speed: 17 m/s

• Maximum Climb Angle: 15

• Maximum Climb Speed: 5.6 m/s

• Maximum Descent Angle: 25

• Maximum Descent Speed: 9.6 m/s

• Service Ceiling: 5000 meters MSL

• Endurance:

  • Up to 180 minutes (without payload)

  • Up to 120 minutes (with 2.5 kg payload)
    (in ideal weather conditions)

  •


Payload Capacity

• Maximum Payload: Up to 2.5 kg

•


Controller

• Weight: 1034 g

• Channels: 16

• Working Voltage: 4.2 V

• Frequency Range: 2.400 GHz “ 2.483 GHz

• Battery Capacity: 20,000 mAh

• Controller Endurance: 8 hours

• Communication Technology: FHSS

• Transmission Range:

  • Video: 8“10 km (LOS)

  • Data: 20“30 km (LOS)

  •


Autopilot & Navigation

• Processor: High-performance STM32H7

• Sensors: Industrial-grade redundant triple IMU sensors

• Navigation: High-precision redundant RTK GNSS receiver with protected frequencies

• Optional System: Radar-based velocity navigation for GPS-denied environments (effective up to 1 km from the ground)
